USB A TX Test Fixture

治具编号:AUT20135

产品介绍

过往测试治具 HOST Fixture 1A的SMA焊接点常容易因插拔而导致损坏。 Allion新设计的AUT20135,降低SMA损坏的风险(若SMA Connector损坏更可直接更换),并同时提高USB 3.0 讯号品质,减少因为治具而造成的量测损耗。

应用范围

USB 3.1 Legacy Device Tx Signals Integrity Test

主要特性

  1. Signals Improvement
  2. SMD SMA Connector implement
  3. Vbus LED Indecated

产品规格

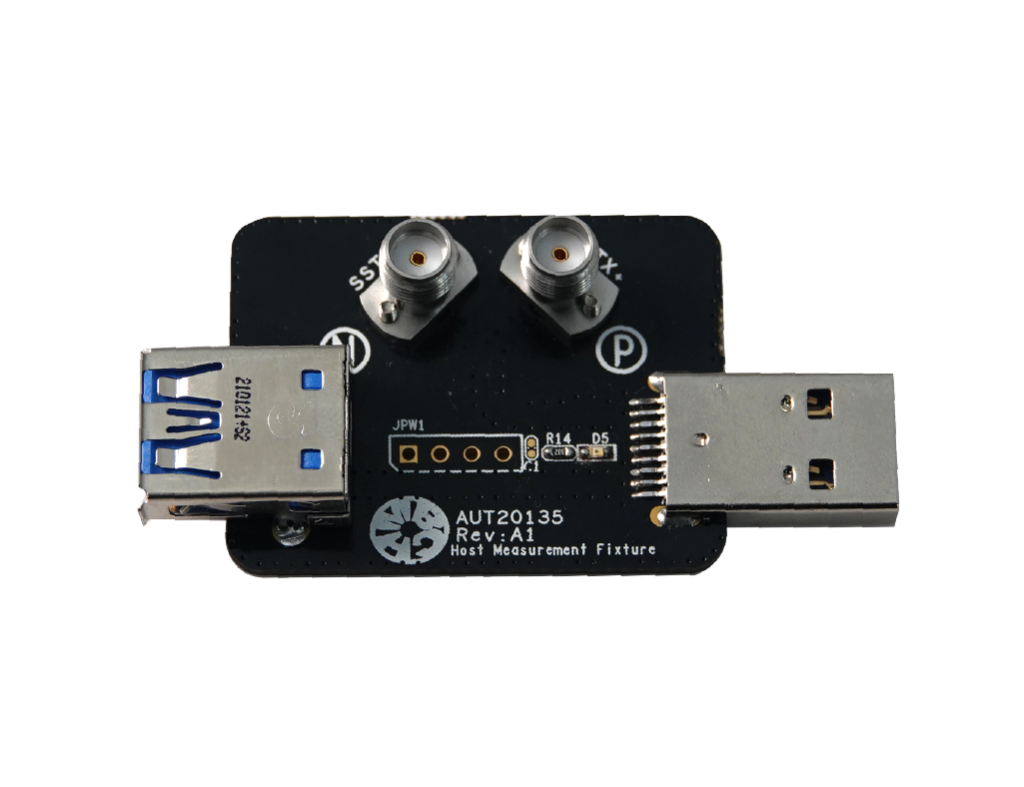

  1. One USB 3.0 Type-A Plug Connector
  2. One USB 3.0 Type-A Receptecl Connector
  3. Two SMA Connectors
  4. 1×4 Pin Header for Vbus Measurement if needed.
  5. LED Indicator to make sure Power
  6. Dimension : 40.20 mm x 30.48 mm
