近期USB-IF针对USB Type-C规范发布了两个Engineering Change Notice (ECN),一为「TBT3 Cable Requirements Update」, 另一个为「Extend Thunderbolt 3 requirement to USB4 Gen 3 Passive Cables」。这两个ECN确立了USB4 Passive Cables需全面支持Thunderbolt。

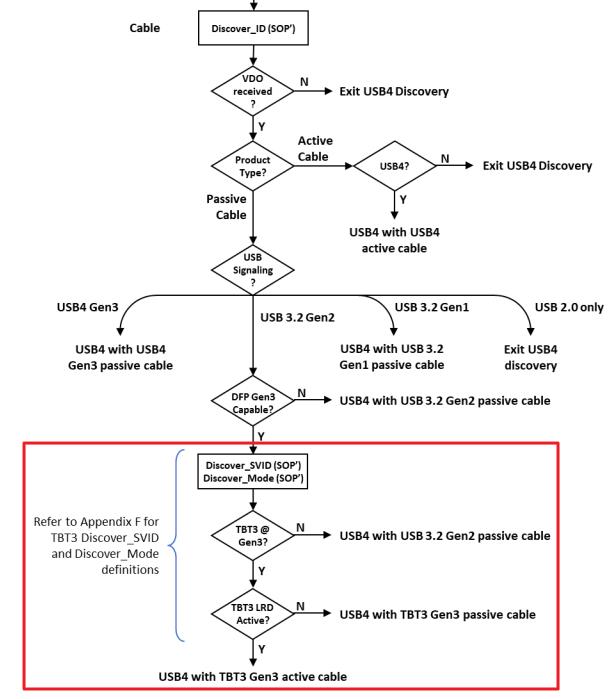

在ECN「TBT3 Cable Requirements Update」中,首先更新了5.4.2章节USB4 Discovery and Entry Flow,将附录F中TBT3 Discover_SVID与Discover_Mode相关定义加入,让USB4 passive/ active cables多了是否兼容于Thunderbolt的检查机制。

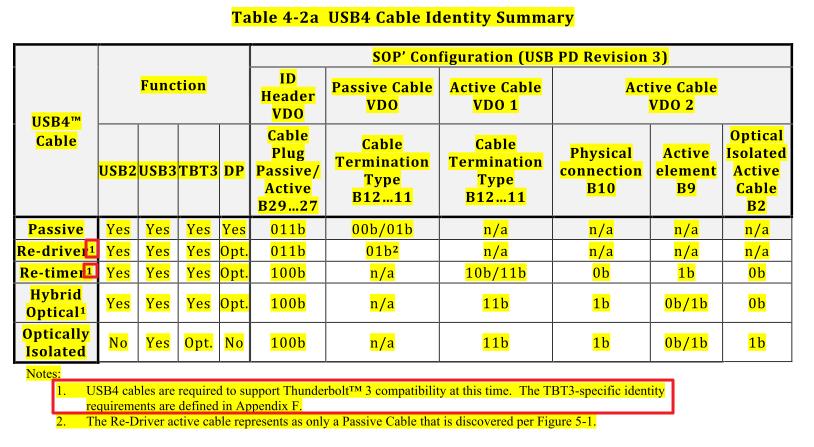

在6.2.1.2章节则新增Table 4-2a USB4 Cable Identify Summary。但该table只说明USB4 re-driver/ re-timer active cables「必须」支持Thunderbolt,仍未要求USB4 passive cables必须支持Thunderbolt。

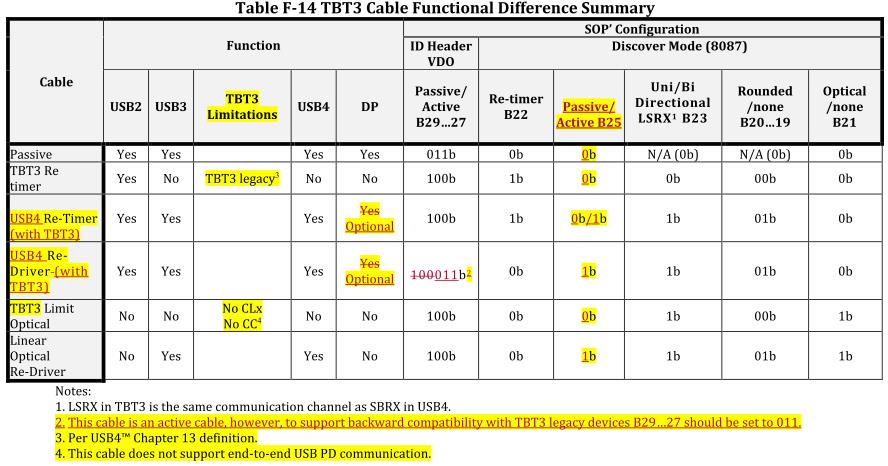

F.2.9章节的Table F-14 TBT3 Cable Functional Difference Summary则针对USB4 re-driver/ re-timer active cables里,PD e-Marker宣告如何支持Thunderbolt做了如下红字的修正。

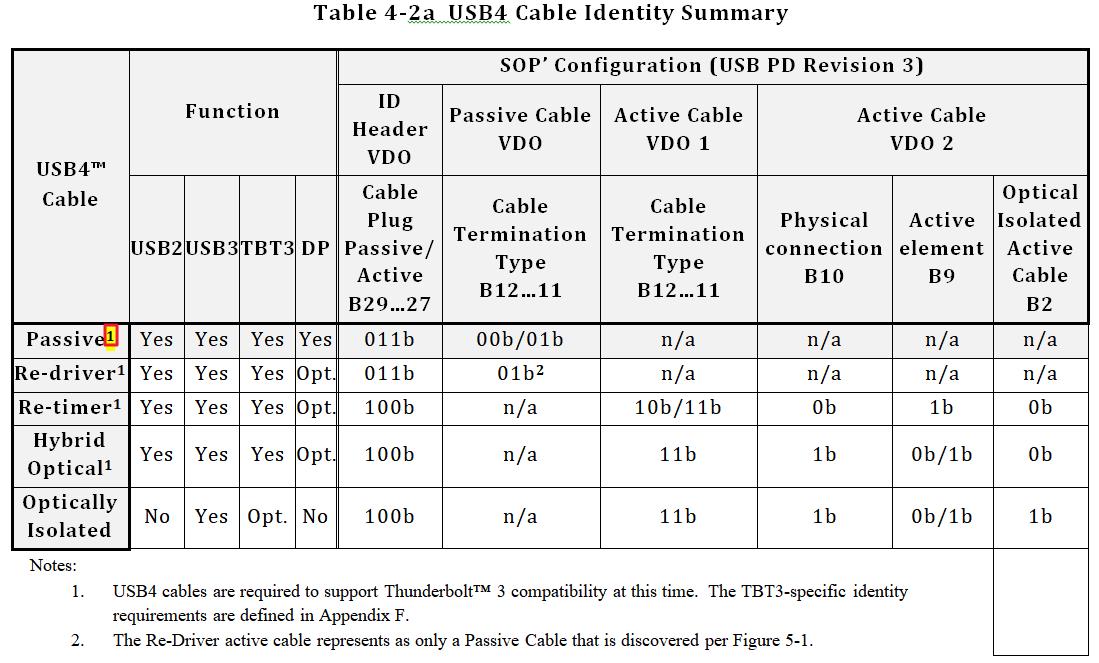

最后在ECN「Extend Thunderbolt 3 requirement to USB4 Gen 3 Passive Cables」中,则再将6.2.1.2章节新增Table 4-2a USB4 Cable Identify Summary里的Note 1标注在passive字段中,至此确定了USB4 Passive Cable全面支持Thunderbolt。

上述两个ECN的发布,使得USB4 passive cables取得USB-IF认证测试需要多执行TBT3 compatibility相关测试。目前预计开始执行的时间会落在今年(2021)的7月中,各位厂商如果想验证手上的USB4 cables是否能pass新测项,欢迎百佳泰cn_service@allion.com.cn做进一步的洽询。
