PCIe OCP NIC3.0 CBB6.0 Test Fixture Set

Product Summary

PCIe OCP NIC3.0 CBB6.0 Test Fixture Set

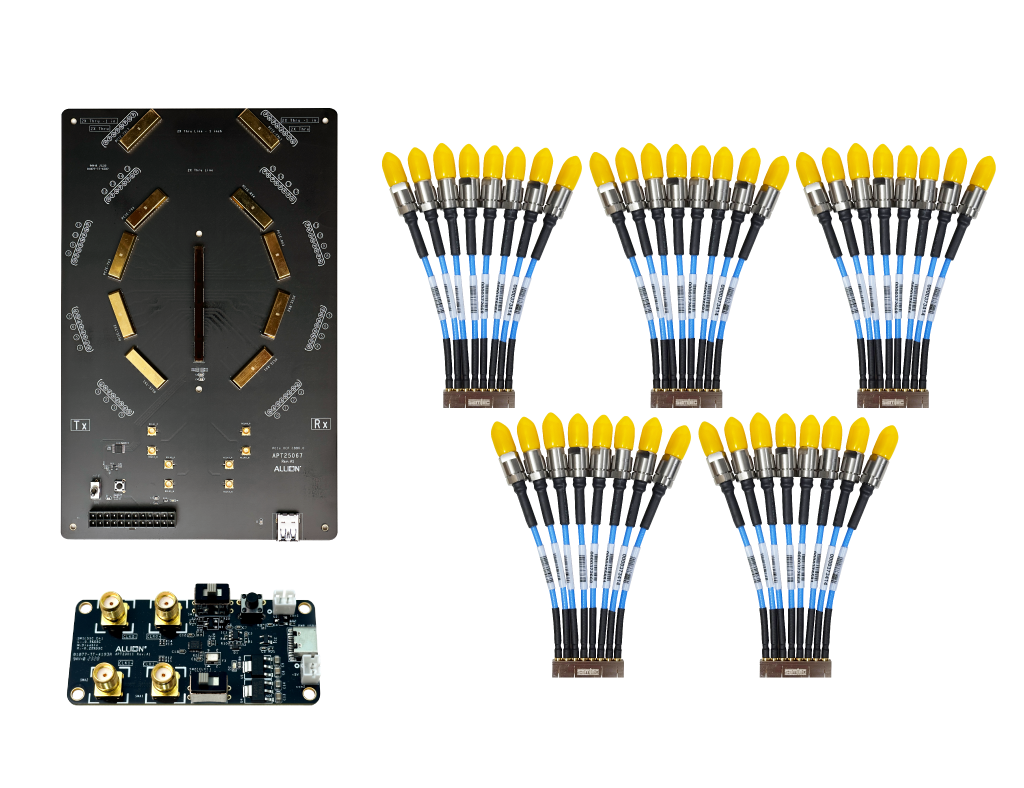

• PCIe OCP NIC3.0 CBB6.0 测试治具套组包含以下项目：

1. PCIe OCP NIC3.0 CBB6.0 Test Fixture (Model Name: APT25067)
2. Allion CMTS Board (Model Name: APT23011)
3. SMPM 1 by 8 Cable Module*5

• 交期为下单后8-10周

Application

• 适用于 PCI Express 装置与 AIC 扩充卡认证测试 for Tx/Rx (Gen1–Gen6)

Key Feature

• 适用于 OCP NIC3.0 电气测试 for Tx & Rx
• 强化SMPM链接器设计，最高可支持 50Ghz
• 具弹性的线缆配件，提升安装便利性
• 提供两倍校正板 (不包含连接器)

Specification

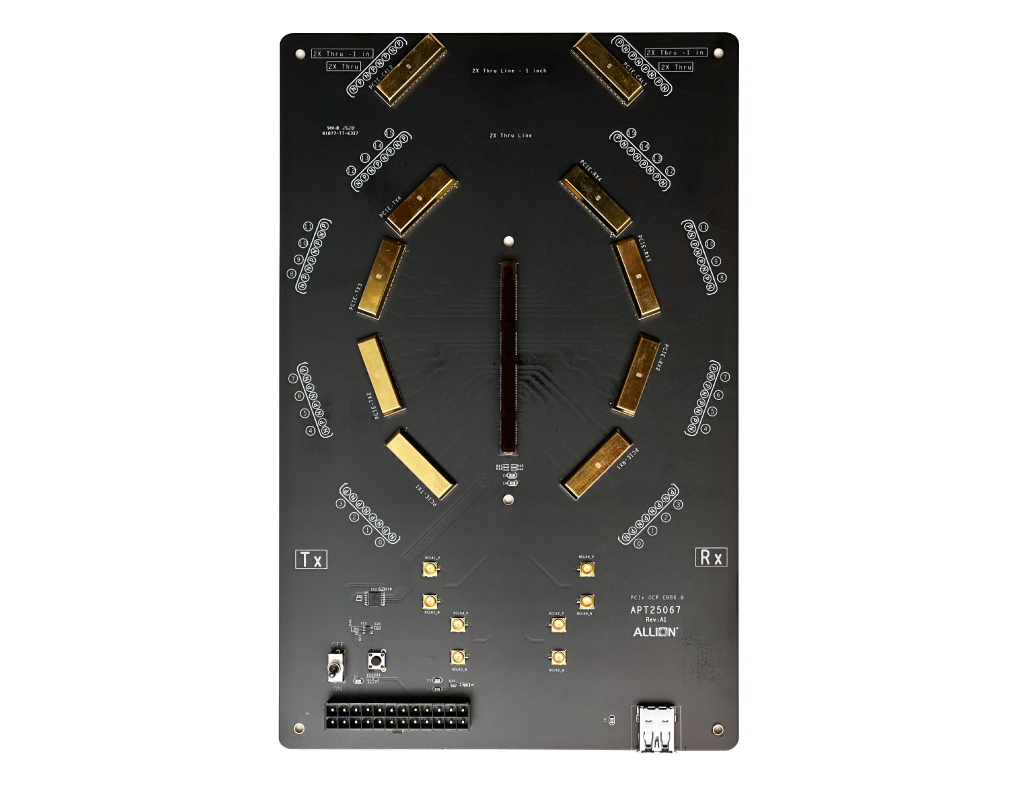

APT25067

• SFF-TA-1002/EDSFF 4C+Receptacle Connector
• Eight SMPM 1 by 8 Connectors for All 16 Lanes
• Eight Pieces SMP Connectors for Reference Clock
• Long Channel (2X Thru) & Short Channel De-embedded Structure
• ATX Power Supply 24Pins Connector
• PS_ON# Switch
• PCIe_RST# Button
• USB-A Connector for CMTS
• Dimesion : 23.20cm x 16.80cm
