PCI Express EDSFF 1C/2C (E1/E3) Test Fixture
Product ID: APT21099 / APT21107 / APT21108
Product Summary
EDSFF(Enterprise and Data Center SSD Form Factor) 1C/2C PCIe Gne4 /Gen5测试治具组。
整合原本繁多的线材,设计线材模块化。
Application
EDSFF(Enterprise and Data Center SSD Form Factor) 1C/2C PCIe Gne4/Gen5 Test Fixture Set for Tx/Rx
Key Feature
- 适用于E1.S / E1.L(TA-1006/TA-1007) & E3(TA-1008)
- 强化SMPM连接器结构,可支持至40GHz
- 缩小尺寸更便于量测
- 线材模块化,安装简单化
- 两倍校正线
Specification

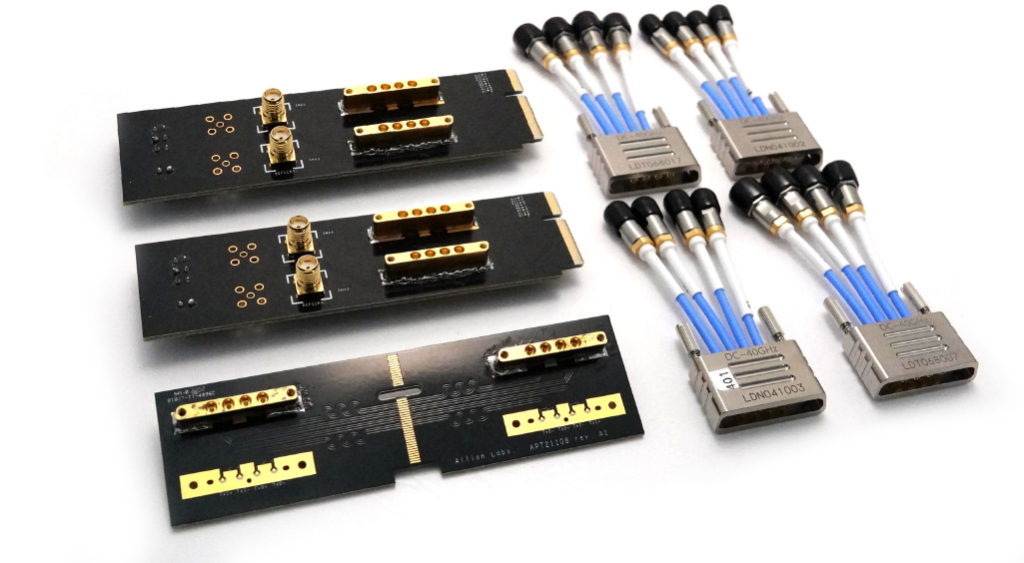

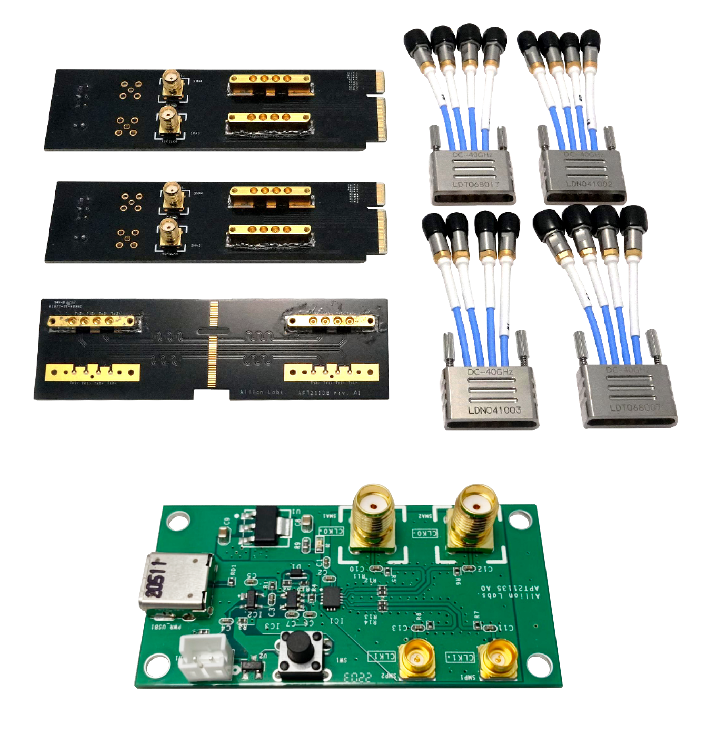

APT21099/APT21107
- EDSFF C1/C2 PCIe Golden Finger连接至Host端以执行PCIe 测试
- 4颗SMPM Connector 用于Lane 0~3(APT21099) & Lane 4 ~ 7(APT21107)
- 2颗SMA Connector用于Reference Clock

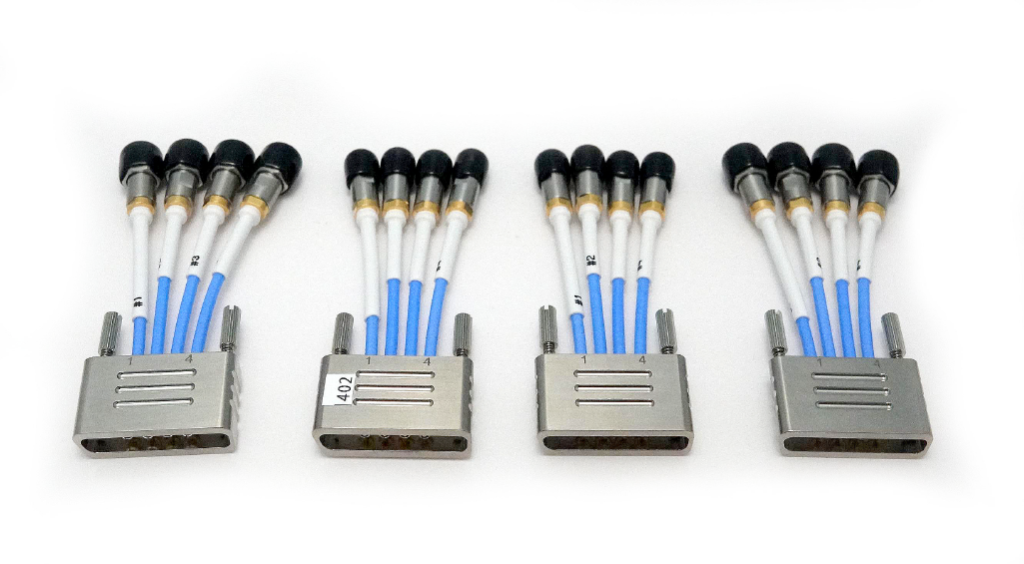

- 2条有SK Receptacle的SMPM 6 inch Cable (一套仅2对)
APT21108
- 4颗SMPM Connector 用于两倍校正线
此款治具需搭配百佳泰PCIe测试方案,目前无单独贩卖计划,若有相关测试需求欢迎与我们联系
