OCP NIC3.0 PCIe CLB5.0 Test Fixture

Product ID: APT22005 / APT22009 / APT22010 / APT21135

Product Summary

OCP NIC3.0及EDSFF(Enterprise and Data Center SSD Form Factor) 4C/4C+ PCIe Gen4 /Gen5 测试治具组。
整合原本繁多的线材,设计线材模块化。

  • 此治具组包含:

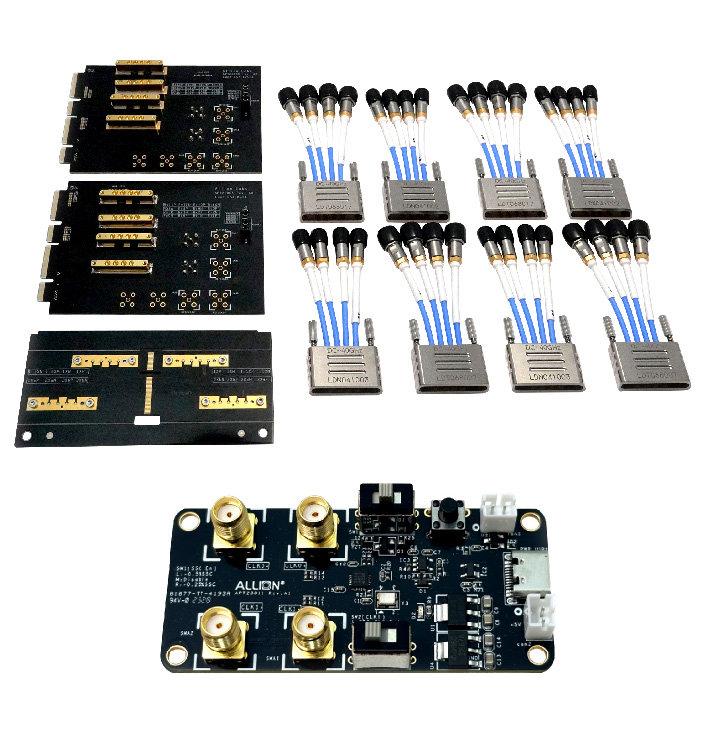

    1. OCP NIC3.0 CLB5.0-L0x8 (Model Name: APT22005)
    2. OCP NIC3.0 CLB5.0-L4x12 (Model Name: APT22009)
    3. OCP NIC3.0 CLB5.0-CAL (Model Name: APT22010)
    4. Allion CMTS Board (Model Name: APT21135)
    5. Cable Module*8
  • 交期为收到订单后6-8周

Application

  • OCP NIC3.0
  • EDSFF (Enterprise and Data Center SSD Form Factor) 4C/4C+
  • PCIe Gen4/Gen5 Test Fixture Set for Tx/Rx

Key Feature

  1. 适用于 EDSFF 规格 TA-1002 4C/4C+、OCP NIC3.0、GEN-Z、PECFF、SNIA Native NVME of Drive Tx & Rx.
  2. 强化SMPM连接器结构,可支持至40GHz
  3. 缩小尺寸更便于量测
  4. 线材模块化,安装简单化
  5. 两倍校正线

Specification

APT22005/APT22009
  • OCP NIC3.0或EDSFF C4/C4+ PCIe Golden Finger 连接至Host端以执行PCIe 测试
  • (APT22005) 8颗SMPM Connector用于Lane 0~3 & 8~11
    (APT22009) 8颗SMPM Connector用于Lane 4 ~ 7 & 12~15
  • 2颗SMA Connector用于Reference Clock
  • 8组支持PC-2.92的SMPM 3 inches 线盒 (每组连接2对differential signals)
APT22010
  • 2顆SMPM Connector 用於兩倍校正線

如有其他任何疑问或需求,欢迎随时联系我们:cn_service@allion.com.cn
