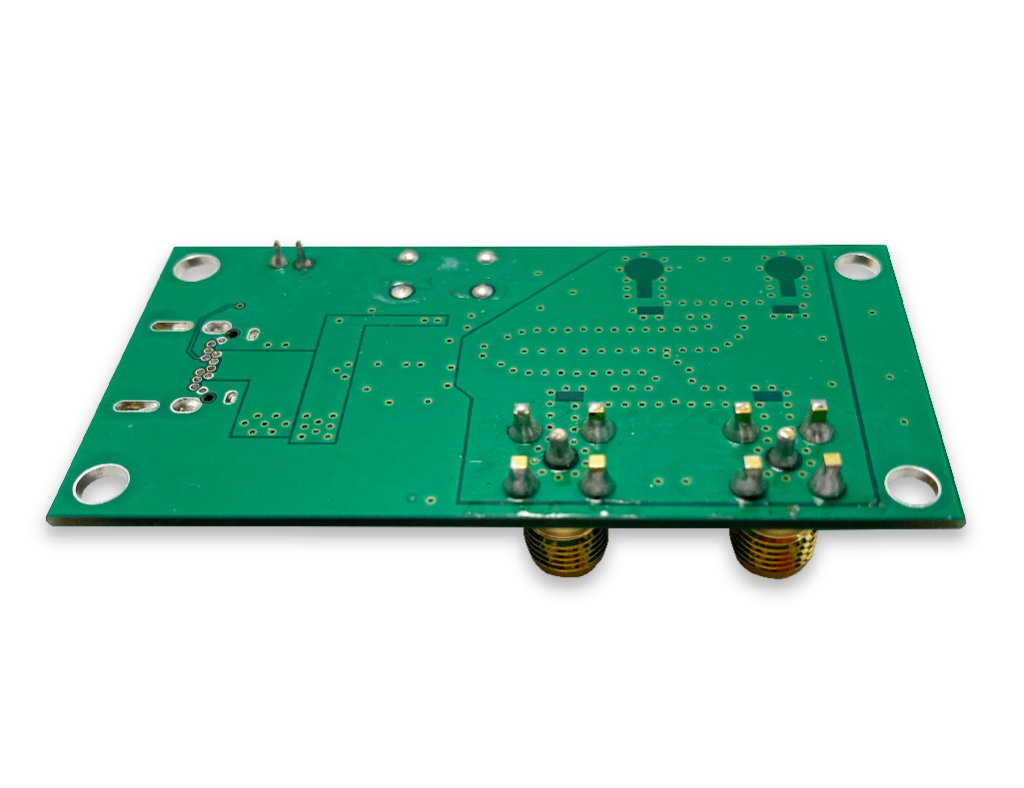

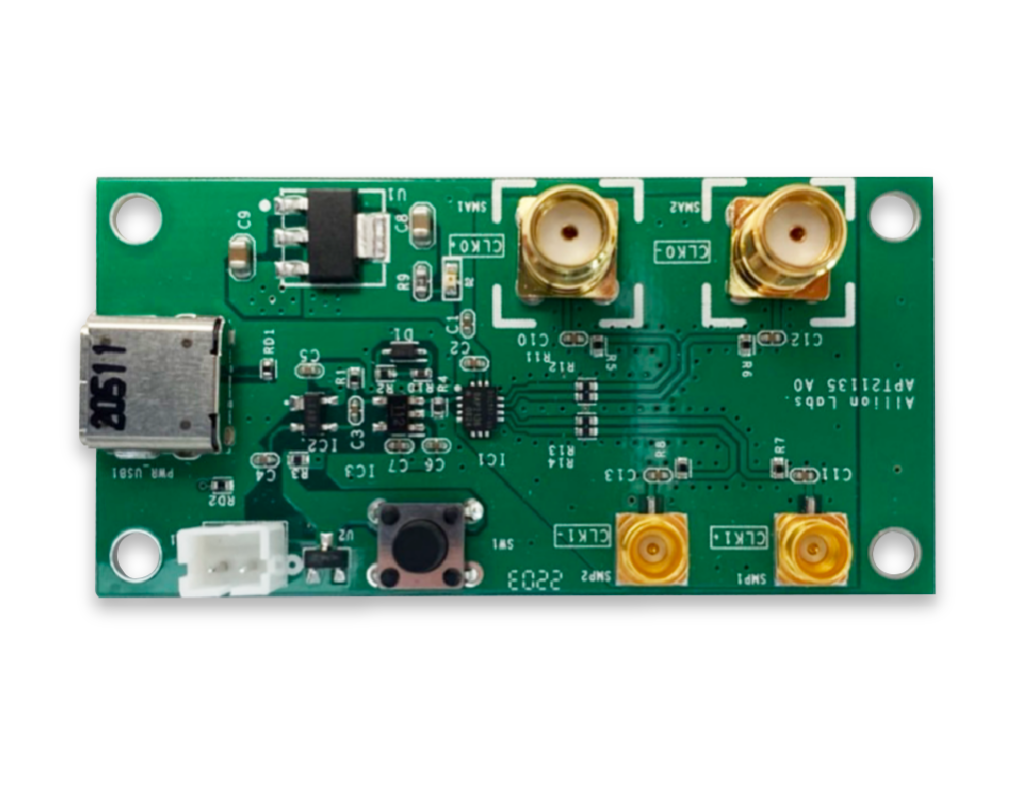

Allion CMTS Toggle Board
Product ID: APT21135
Product Summary
过往执行PCIe传输电气测试时，必须透过繁复手续切换Rx信号后进入Compliance Mode才能进行检测，费时、费工又费力。
现在只要使用百佳泰CMTS Toggle Board，便可透过SMP/SMA连接待测物的Rx信号，即可切换至Compliance Mode进行检测，大幅减少检测前的准备作业。
Application
PCIe Compliance Test
Key Feature
- Standalone Test Fixture
- PCI-SIG CMTS toggle function compatibility
Specification
- One USB Receptacle Connector for 5V Power
- Two SMP Connectors for PCIe Rx connection
- Two SMA Connectors for PCIe Rx connection
- One Push Button for Compliance Mode Toggle
- One 2.0mm Box Header for Reserved
- Dimension : 60.00 mm x 30.00 mm
如有其他任何疑问或需求，欢迎随时联系我们：cn_service@allion.com.cn
